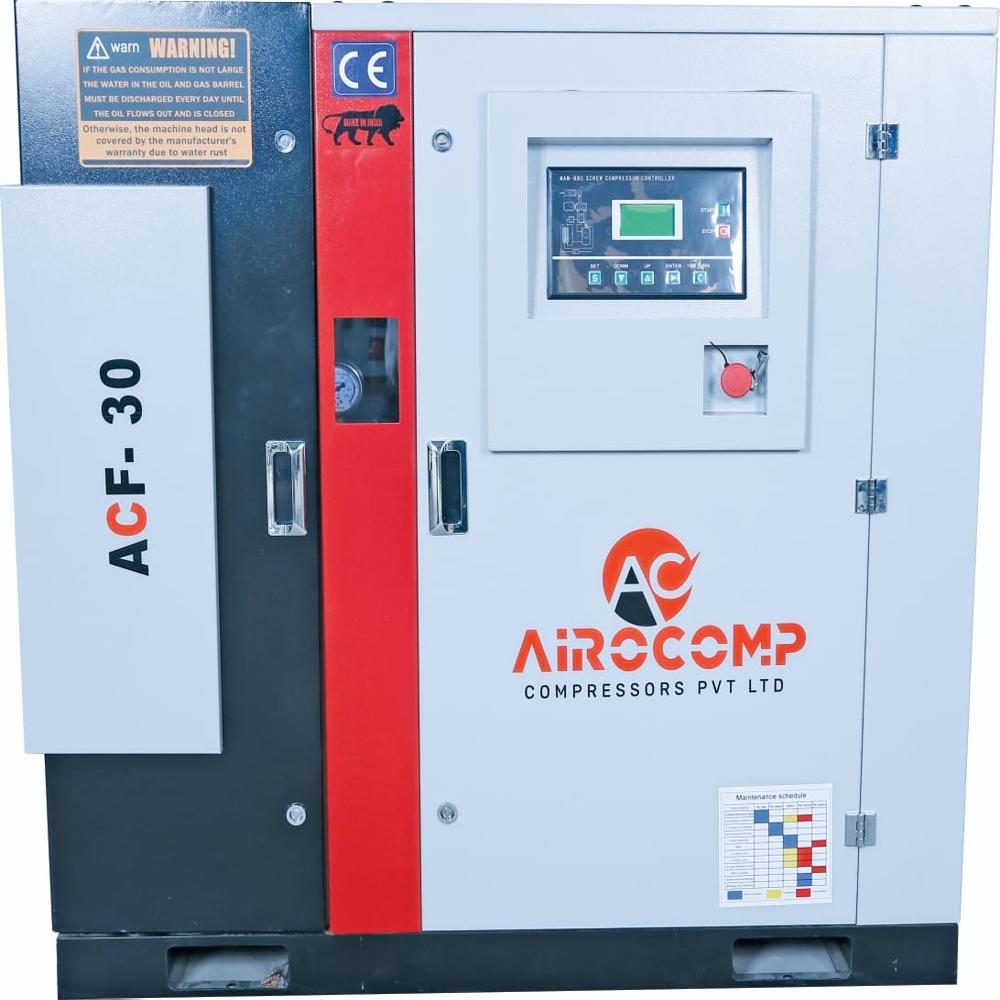

30HP Fixed Speed Single Stage Rotary Screw Air Compressor

30HP Fixed Speed Single Stage Rotary Screw Air Compressor Specification

Noise Level
70 db

Air Discharge
1"

Power Consumption
30 Horsepower (HP)

Usage
LASER CUTTING, TRANSPORT, PHARMACEUTICALS, POWER, OIL, RAILWAYS,CHEMICAL, TEXTILE, PRINTING, SHIP-BULDINGS, PAPER MANUFACTURING, ELECTRONICS, MEDICAL, FOOD ABD BEVERAGES AAND PLASTICS.

Condition
New

Material
Mild Steel

Height
1090 Millimeter (mm)

Product Type
INDUSTRIAL USAGE LIKE: pneumatics tools, automation, material handling, painting & finishing, cleaning & blowing, molding & forming, pacakaging, cutting etc.

Power Source
Electric

Voltage
42 Ampere (amp)

Color
White

Dimensions
5 Foot (ft)

Length
1200 Millimeter (mm)

Width
880 Millimeter (mm)

Lubrication Type
Lubricated

Configuration
A direct drive screw air compressor is a type of rotary screw compressor where the electric motor is directly connected to the compressor unit (airend), eliminating the need for belts, pulleys, or gears. This direct connection offers several advantages, making it a popular choice for various industrial applications. How it Works: Like all rotary screw compressors, the direct drive model utilizes two intermeshing helical rotors (a male and a female rotor) that rotate in opposite directions. As they spin, they trap air in the cavities between the rotors and their housing. The design of the rotors progressively reduces the volume of these cavities, compressing the air. The compressed air is then discharged through an outlet port. In a direct drive system, the motor's shaft is directly coupled to the airend's shaft. This means the airend rotates at the same speed as the motor. Key Characteristics and Benefits: * High Efficiency: * Reduced Power Loss: The direct connection eliminates the energy losses associated with friction and slippage in belts or the inefficiencies of gearboxes. This leads to higher power transmission efficiency, meaning more of the motor's power is converted into compressed air. * Lower Energy Costs: The improved efficiency translates directly into lower electricity consumption, resulting in significant energy savings over the compressor's lifespan, especially for continuous operation. * Low Maintenance and High Reliability: * Fewer Moving Parts: Without belts, pulleys, or gears, there are fewer components to wear out or break down. This reduces the need for routine maintenance tasks like belt tension checks and replacements. * Longer Service Life: The reduced mechanical stress and fewer wear points contribute to a longer operational life for the compressor. * Lower Downtime: Less maintenance and fewer potential failure points mean increased uptime for your operations. * Quieter Operation: * The absence of belts and gears often results in a quieter operating compressor, which can be beneficial in certain work environments. * Compact Design: * The integrated design of the motor and airend allows for a more compact footprint, which can be advantageous in spaces with limited room. * Better for Harsh Environments: * Direct drive systems tend to be more robust and can withstand extreme temperatures better than belt-driven counterparts, as belts can be affected by temperature fluctuations. Direct Drive vs. Belt-Driven Screw Air Compressors:

Air Flow Capacity
135 Cubic Feet Per Minute (ft3/min)

Driven Method
DIRECT DRIVEN (COUPLING)

Motor
30HP IE4

Warranty
1 Year

30HP Fixed Speed Single Stage Rotary Screw Air Compressor Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5 Units Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
RAPPED IN FULLY CARDBOARD, BUBBLE POLYTHENE & WOODEN BOX IF YOUR INTRESTED.

Main Domestic Market
All India

About 30HP Fixed Speed Single Stage Rotary Screw Air Compressor

The 30HP Fixed Speed Single Stage Rotary Screw Air Compressor is an innovative industrial-grade solution designed to deliver reliable and consistent performance. Made from durable mild steel, this cutting-edge compressor is built to withstand demanding applications. Powered by electricity, it operates efficiently with a 30-horsepower motor to meet heavy-duty industrial requirements. Finished in a sleek white color, the compressor seamlessly combines functionality and aesthetics. Its fixed-speed design ensures stable airflow, while the single-stage operation guarantees precision. This unit is entirely new and engineered for long-term use, backed by a 1-year comprehensive warranty for assured quality. Ideal for manufacturing units, workshops, and other industrial settings, the compressor is both robust and power-efficient, making it a trusted choice for professionals in need of dependable compressed air solutions.
